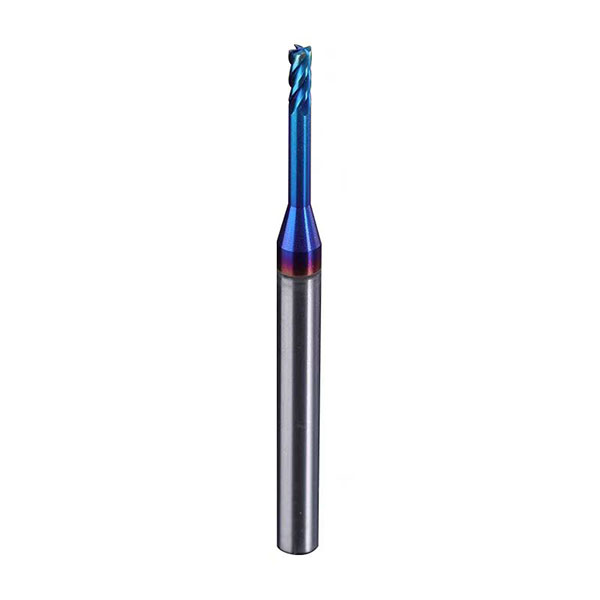

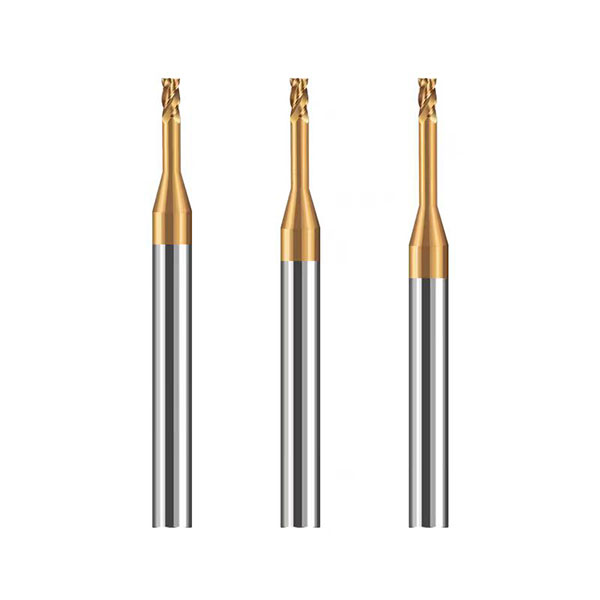

Long Neck Square End Mill
- HRC: HRC55; HRC65
- Coating: TiSiN; AlTiSiN; AlTiN
Features
- Round handle chamfered, stable handle design.
- Large spiral chip removal to avoid tool sticking.
- Large core diameter design reduces tool breakage.
Products Categories
Get A Free Quote
Long Neck Square End Mill Description
- Place of Origin: Guangdong, China
- Brand Name: INMAN TOOLS
- Model Number: HRC55,HRC65
- Material: Carbide
- Stock: Rich
- Processing Type: Metal Cutting Tools
HRC55
- Raw Material: Use ZK30UF with 10% Co content and 0.6um grain size.
- Coating: TiSiN, with very high surface hardness and good wear resistance, AlTiN, AlTiSiN is also available.
- Application: Widely used in Machining, aerospace, automobile and other precision manufacturing areas.
HRC65
- Raw Material: Use GU25UF with 12% Co content and 0.4um grain size
- Coating: AlTiSiN, with the hardness and thermal stability are up to 4000HV and 1200℃, respectively
- Application: Suitable for milling stainless steel, hardened steel, titanium alloy, etc.

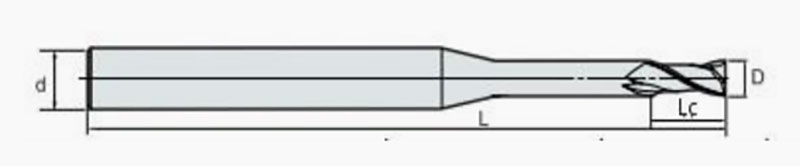

Long Neck Square End Mill Technical
| long neck short flutes square endmill HRC55;HRC65 | ||||||
| Cat No. | Specifications | Flutes | ||||
| DIA | cutting length(Lc) | Effective Length | Shank | OVL | ||
| 0.2*4D*50L-L1 | 0.2 | 0.3 | 1 | 4 | 50 | 2 |
| 0.2*4D*50L-L2 | 0.2 | 0.3 | 2 | 4 | 50 | 2 |
| 0.3*4D*50L-L1 | 0.3 | 0.6 | 1 | 4 | 50 | 2 |
| 0.3*4D*50L-L2 | 0.3 | 0.6 | 2 | 4 | 50 | 2 |
| 0.3*4D*50L-L3 | 0.3 | 0.6 | 3 | 4 | 50 | 2 |
| 0.4*4D*50L-L2 | 0.4 | 0.6 | 2 | 4 | 50 | 2 |
| 0.4*4D*50L-L3 | 0.4 | 0.6 | 3 | 4 | 50 | 2 |
| 0.4*4D*50L-L4 | 0.4 | 0.6 | 4 | 4 | 50 | 2 |
| 0.4*4D*50L-L6 | 0.4 | 0.6 | 6 | 4 | 50 | 2 |
| 0.5*4D*50L-L2 | 0.5 | 0.8 | 2 | 4 | 50 | 2 |
| 0.5*4D*50L-L3 | 0.5 | 0.8 | 3 | 4 | 50 | 2 |
| 0.5*4D*50L-L4 | 0.5 | 0.8 | 4 | 4 | 50 | 2 |
| 0.5*4D*50L-L5 | 0.5 | 0.8 | 5 | 4 | 50 | 2 |
| 0.5*4D*50L-L6 | 0.5 | 0.8 | 6 | 4 | 50 | 2 |
| 0.5*4D*50L-L8 | 0.5 | 0.8 | 8 | 4 | 50 | 2 |
| 0.6*4D*50L*L2 | 0.6 | 1 | 2 | 4 | 50 | 2 |
| 0.6*4D*50L*L3 | 0.6 | 1 | 3 | 4 | 50 | 2 |
| 0.6*4D*50L*L4 | 0.6 | 1 | 4 | 4 | 50 | 2 |
| 0.6*4D*50L*L5 | 0.6 | 1 | 5 | 4 | 50 | 2 |
| 0.6*4D*50L*L6 | 0.6 | 1 | 6 | 4 | 50 | 2 |
| 0.6*4D*50L*L8 | 0.6 | 1 | 8 | 4 | 50 | 2 |
| 0.7*4D*50L-L3 | 0.7 | 1 | 3 | 4 | 50 | 2 |
| 0.7*4D*50L-L4 | 0.7 | 1 | 4 | 4 | 50 | 2 |
| 0.7*4D*50L-L5 | 0.7 | 1 | 5 | 4 | 50 | 2 |
| 0.7*4D*50L-L6 | 0.7 | 1 | 6 | 4 | 50 | 2 |
| 0.7*4D*50L-L8 | 0.7 | 1 | 8 | 4 | 50 | 2 |
| 0.7*4D*50L-L10 | 0.7 | 1 | 10 | 4 | 50 | 2 |
| 0.8*4D*50L-L3 | 0.8 | 1.2 | 3 | 4 | 50 | 2 |
| 0.8*4D*50L-L4 | 0.8 | 1.2 | 4 | 4 | 50 | 2 |
| 0.8*4D*50L-L5 | 0.8 | 1.2 | 5 | 4 | 50 | 2 |
| 0.8*4D*50L-L6 | 0.8 | 1.2 | 6 | 4 | 50 | 2 |
| 0.8*4D*50L-L8 | 0.8 | 1.2 | 8 | 4 | 50 | 2 |
| 0.8*4D*50L-L10 | 0.8 | 1.2 | 10 | 4 | 50 | 2 |
| 1*4D*50L-L5 | 1 | 2 | 5 | 4 | 50 | 2/4 |
| 1*4D*50L-L6 | 1 | 2 | 6 | 4 | 50 | 2/4 |
| 1*4D*501-18 | 1 | 2 | 8 | 4 | 50 | 2/4 |
| 1*4D*50L-L10 | 1 | 2 | 10 | 4 | 50 | 2/4 |
| 1*4D*50L-L12 | 1 | 2 | 12 | 4 | 50 | 2/4 |
| 1*4D*50L-L14 | 1 | 2 | 14 | 4 | 50 | 2/4 |
| 1*4D*50L-L16 | 1 | 2 | 16 | 4 | 50 | 2/4 |
| 1*4D*50L-L20 | 1 | 2 | 20 | 4 | 50 | 2/4 |
| 1.5*4D*50L-L6 | 1.5 | 3 | 6 | 4 | 50 | 2/4 |
| 1.5*4D*50L-L8 | 1.5 | 3 | 8 | 4 | 50 | 2/4 |
| 1.5*4D*50L-L10 | 1.5 | 3 | 10 | 4 | 50 | 2/4 |
| 1.5*4D*50L-L12 | 1.5 | 3 | 12 | 4 | 50 | 2/4 |
| 1.5*4D*50L-L14 | 1.5 | 3 | 14 | 4 | 50 | 2/4 |
| 1.5*4D*50L-L16 | 1.5 | 3 | 16 | 4 | 50 | 2/4 |
| 1.5*4D*50L-L20 | 1.5 | 3 | 20 | 4 | 50 | 2/4 |
| 2*4D*50L-L8 | 2 | 4 | 8 | 4 | 50 | 2/4 |
| 2*4D*50L-L10 | 2 | 4 | 10 | 4 | 50 | 2/4 |
| 2*4D*50L-L12 | 2 | 4 | 12 | 4 | 50 | 2/4 |
| 2*4D*50L-L14 | 2 | 4 | 14 | 4 | 50 | 2/4 |
| 2*4D*50L-L16 | 2 | 4 | 16 | 4 | 50 | 2/4 |
| 2*4D*50L-L20 | 2 | 4 | 20 | 4 | 50 | 2/4 |
| 3*4D*50L-L12 | 3 | 5 | 12 | 4 | 50 | 2/4 |
| 3*4D*50L-L16 | 3 | 5 | 16 | 4 | 50 | 2/4 |
| 3*4D*50L-L20 | 3 | 5 | 20 | 4 | 50 | 2/4 |
| 3*6D*50L-L12 | 3 | 5 | 12 | 6 | 50 | 2/4 |
| 3*6D*50L-L16 | 3 | 5 | 16 | 6 | 50 | 2/4 |
| 3*6D*50L-L20 | 3 | 5 | 20 | 6 | 50 | 2/4 |
| 3*6D*75L-L26 | 3 | 5 | 26 | 6 | 75 | 2/4 |
| 3*6D*75L-L30 | 3 | 5 | 30 | 6 | 75 | 2/4 |
| 4*6D*50L-L16 | 4 | 6 | 16 | 6 | 50 | 2/4 |
| 4*6D*50L-L20 | 4 | 6 | 20 | 6 | 50 | 2/4 |
| 4*6D*75L-L26 | 4 | 6 | 26 | 6 | 75 | 2/4 |
| 4*6D*75L-L30 | 4 | 6 | 30 | 6 | 75 | 2/4 |
Packaging & Delivery
- One plastic pipe pack one piece,10 pcs per group
- Put goods enclosed with air bubble paper into box
- Other package is accepted according to customer’s requirement
Shipment: UPS/Fedex/DHL/TNT/EMS/ect
