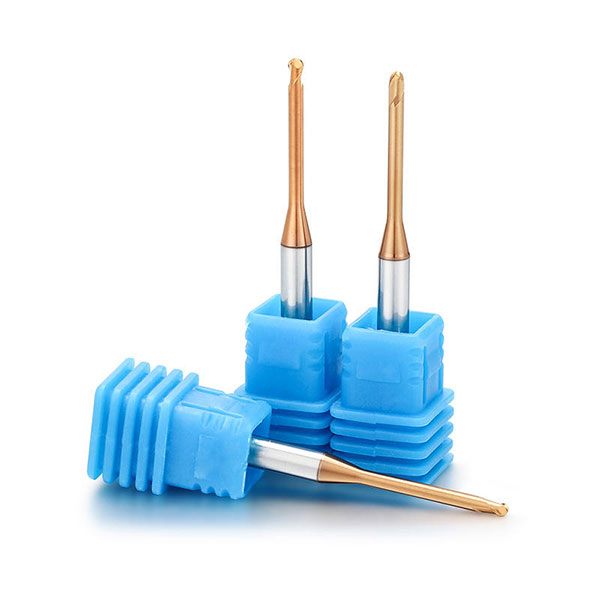

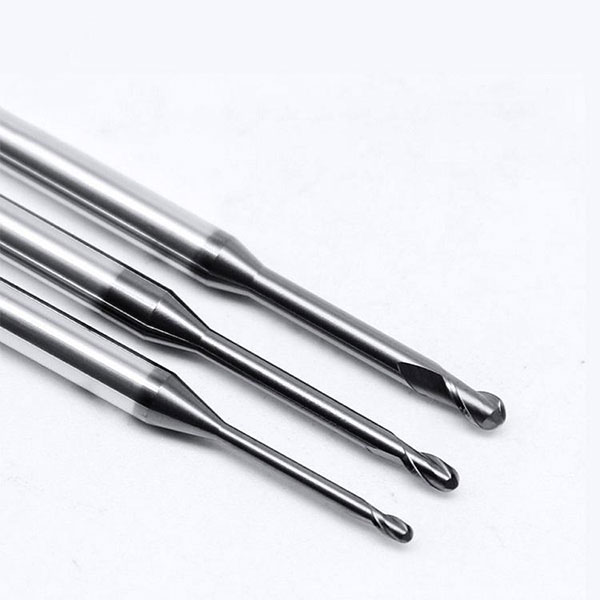

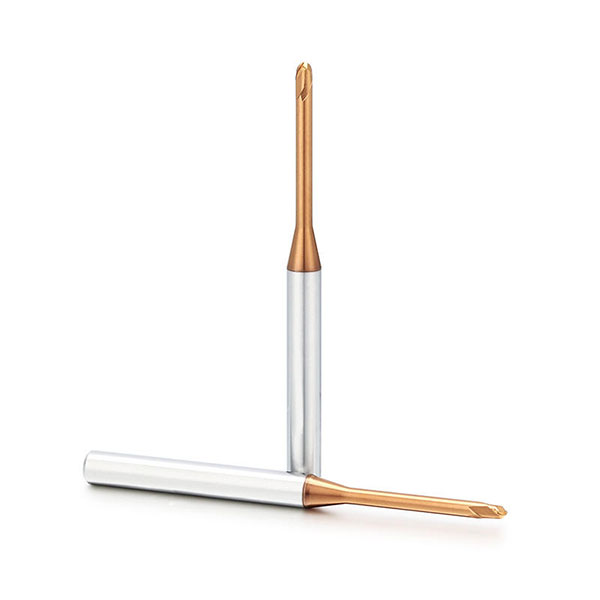

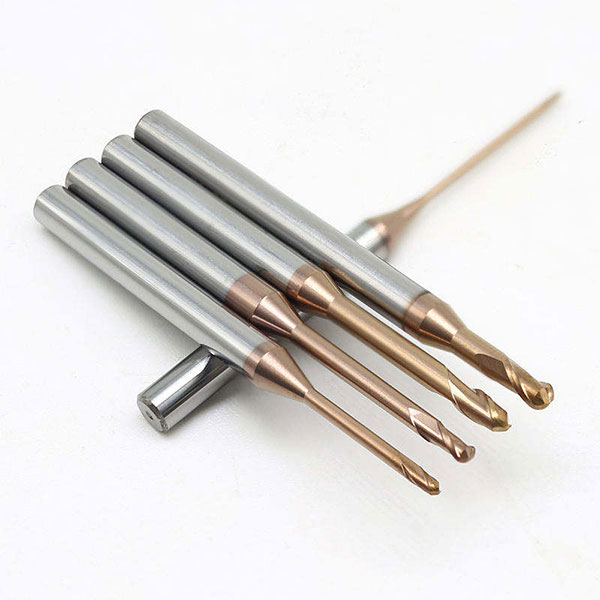

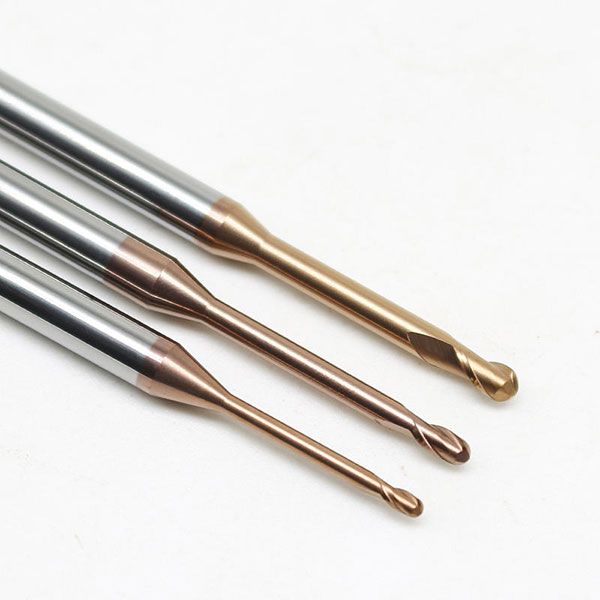

Long Neck Ball Nose End Mill
- HRC: HRC55; HRC65
- COATING: TiSiN; AlTiSiN; AlTiN
Features
- The cutter head adopts advanced coating technology to create a balanced paint surface, which is rust-proof and high-temperature resistant.
- Adopting an appropriate negative rake angle design to strengthen the edge strength and sharpness, and using a large core diameter to enhance tool rigidity and ensure stable cutting and chip removal.
- The use of arc ligament cleaning design reduces the wear of the milling cutter during milling, and the blade is long-lasting and sharp, and the chip removal is smooth with the degree spiral groove.
Products Categories
Get A Free Quote
Long Neck Ball Nose End Mill Description
- Place of Origin: Guangdong, China
- Brand Name: INMAN TOOLS
- Model Number: HRC55/HRC65
- Material: Carbide
- Stock: Rich
- Processing Type: Metal Cutting Tools
HRC55
- Raw Material: Use ZK30UF with 10% Co content and 0.6um grain size.
- Coating: TiSiN, with very high surface hardness and good wear resistance, AlTiN, AlTiSiN is also available.
- Application: Widely used in Machining, aerospace, automobile and other precision manufacturing areas.
HRC65
- Raw Material: Use GU25UF with 12% Co content and 0.4um grain size
- Coating: AlTiSiN, with the hardness and thermal stability are up to 4000HV and 1200℃, respectively
- Application: Suitable for milling stainless steel, hardened steel, titanium alloy, etc.

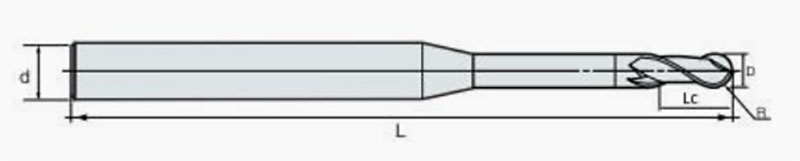

Long Neck Ball Nose End Mill Technical
long neckball nose endmill | ||||||
Cat No. | Specifications | Flutes | ||||
DIA | cutting length(Lc) | Effective Length | Shank | OVL | ||
R0.1*4D*50L-L1 | R0.1 | 0.3 | 1 | 4 | 50 | 2 |
R0.1*4D*50L-L2 | R0.1 | 0.3 | 2 | 4 | 50 | 2 |
R0.15*4D*50L-L1 | R0.15 | 0.6 | 1 | 4 | 50 | 2 |
R0.15*4D*50L-L2 | R0.15 | 0.6 | 2 | 4 | 50 | 2 |
R0.15*4D*50L-L3 | R0.15 | 0.6 | 3 | 4 | 50 | 2 |
R0.2*4D*50L-L2 | R0.2 | 0.6 | 2 | 4 | 50 | 2 |
R0.2*4D*50L-L3 | R0.2 | 0.6 | 3 | 4 | 50 | 2 |
R0.2*4D*50L-L4 | R0.2 | 06 | 4 | 4 | 50 | 2 |
R0.2*4D*50L-L6 | R0.2 | 0.6 | 6 | 4 | 50 | 2 |
R0.25*4D*50L-L2 | R0.25 | 0.8 | 2 | 4 | 50 | 2 |
R0.25*4D*50L-L3 | R0.25 | 0.8 | 3 | 4 | 50 | 2 |
R0.25*4D*50L-L4 | R0.25 | 0.8 | 4 | 4 | 50 | 2 |
R0.25*4D*50L-L5 | R0.25 | 0.8 | 5 | 4 | 50 | 2 |
R0.25*4D*50L-L6 | R0.25 | 0.8 | 6 | 4 | 50 | 2 |
R0 25*4D*50L-L8 | R0.25 | 0.8 | 8 | 4 | 50 | 2 |
R0.3*4D*50L-L2 | R0.3 | 1 | 2 | 4 | 50 | 2 |
R0.3*4D*50L-L3 | R0.3 | 1 | 3 | 4 | 50 | 2 |
R0.3*4D*50L-L4 | R0.3 | 1 | 4 | 4 | 50 | 2 |
R0.3*4D*50L-L5 | R0.3 | 1 | 5 | 4 | 50 | 2 |
R0.3*4D*50L-L6 | R0.3 | 1 | 6 | 4 | 50 | 2 |
R0.3*4D*50L-L8 | R0.3 | 1 | 8 | 4 | 50 | 2 |
R0.4*4D*50L-L3 | R0.4 | 1.2 | 3 | 4 | 50 | 2 |
R0.4*4D*50L-L4 | R0.4 | 1.2 | 4 | 4 | 50 | 2 |
R0.4*4D*50L-L5 | R0.4 | 1.2 | 5 | 4 | 50 | 2 |
R0.4*4D*50L-L6 | R0.4 | 1.2 | 6 | 4 | 50 | 2 |
R0.4*4D*50L-L8 | R0.4 | 1.2 | 8 | 4 | 50 | 2 |
R0.4*4D*50L-L10 | R0.4 | 1.2 | 10 | 4 | 50 | 2 |
R0.5*4D*50L-L5 | R0.5 | 2 | 5 | 4 | 50 | 2/4 |
R0.5*4D*50L-L6 | R0.5 | 2 | 6 | 4 | 50 | 2/4 |
R0.5*4D*50L-L8 | R0.5 | 2 | 8 | 4 | 50 | 2/4 |
R0.5*4D*50L-L10 | R0.5 | 2 | 10 | 4 | 50 | 2/4 |
R0.5*4D*50L-L12 | R0.5 | 2 2 | 12 | 4 | 50 | 2/4 |
R0.5°4D*50L-L14 | R0.5 | 2 | 14 | 4 | 50 | 2/4 |
R0.5*4D*50L-L16 | R0.5 | 2 | 16 | 4 | 50 | 2/4 |
R0.5*4D*50L-L20 | R0.5 | 2 | 20 | 4 | 50 | 2/4 |
R0.75*4D*50L-L6 | R0.75 | 3 | 6 | 4 | 50 | 2/4 |
R0.75*4D*50L-L8 | R0.75 | 3 | 8 | 4 | 50 | 2/4 |
R0.75*4D*50L-L10 | R0.75 | 3 | 10 | 4 | 50 | 2/4 |
R0.75*4D*50L-L12 | R0.75 | 3 | 12 | 4 | 50 | 2/4 |
R0.75*4D*50L-L14 | R0.75 | 3 | 14 | 4 | 50 | 2/4 |
R0.75*4D*50L-L16 | R0.75 | 3 | 16 | 4 | 50 | 2/4 |
R0.75*4D*50L-L20 | R0.75 | 3 | 20 | 4 | 50 | 2/4 |
R1.0*4D*50L-L8 | R1 | 4 | 8 | 4 | 50 | 2/4 |
R1.0*4D*50L-L10 | R1 | 4 | 10 | 4 | 50 | 2/4 |
R1.0*4D*50L-L12 | R1 | 4 | 12 | 4 | 50 | 2/4 |
R1.0*4D*50L-L14 | R1 | 4 | 14 | 4 | 50 | 2/4 |
R1.0*4D*50L-L16 | R1 | 4 | 16 | 4 | 50 | 2/4 |
R1.0*4D*50L-L20 | R1 | 4 | 20 | 4 | 50 | 2/4 |
R1.5*4D*50L-L12 | R1.5 | 5 | 12 | 4 | 50 | 2/4 |
R1.5*4D*50L-L16 | R1.5 | 5 | 16 | 4 | 50 | 2/4 |
R1.5*4D*50L-L20 | R1.5 | 5 | 20 | 4 | 50 | 2/4 |
R1.5*6D*50L-L12 | R1.5 | 5 | 12 | 6 | 50 | 2/4 |
R1.5*6D*50L-L16 | R1.5 | 5 | 16 | 6 | 50 | 2/4 |
R1.5*6D*50L-L20 | R1.5 | 5 | 20 | 6 | 50 | 2/4 |
R1.5*6D*75L-L26 | R1.5 | 5 | 26 | 6 | 75 | 2/4 |
R1.5*6D*75L-L30 | R1.5 | 5 | 30 | 6 | 75 | 2/4 |
R2.0*6D*50L-L16 | R2 | 6 | 16 | 6 | 50 | 2/4 |
R2.0*6D*50L-L20 | R2 | 6 | 20 | 6 | 50 | 2/4 |
R2.0*6D*75L-L26 | R2 | 6 | 26 | 6 | 75 | 2/4 |
R2.0*6D*75L-L30 | R2 | 6 | 30 | 6 | 75 | 2/4 |
Packaging & Delivery
- One plastic pipe pack one piece,10 pcs per group
- Put goods enclosed with air bubble paper into box
- Other package is accepted according to customer’s requirement
Shipment: UPS/Fedex/DHL/TNT/EMS/ect
