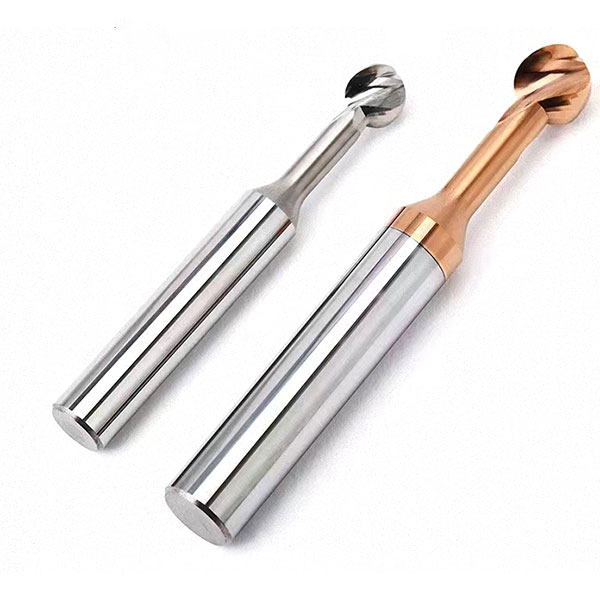

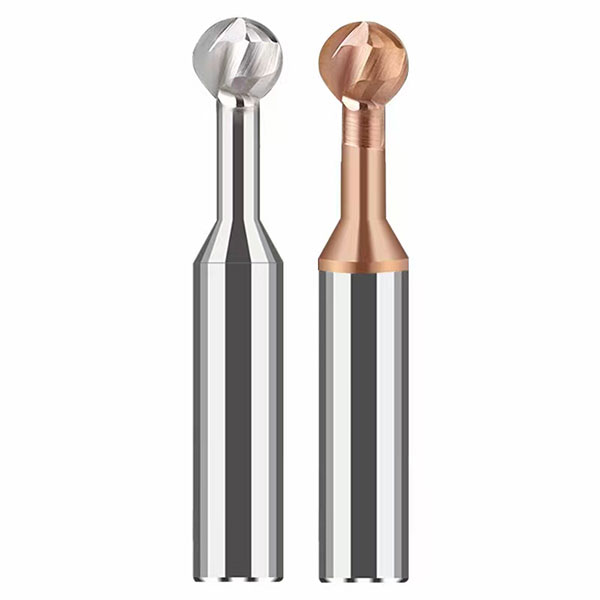

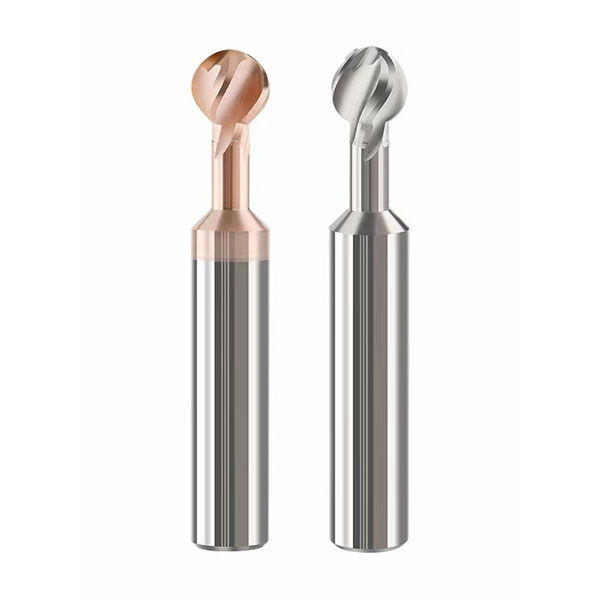

Lollipop Milling Cutter
- HRC: HRC45，HRC55,HRC60,HRC65
- Coated: ALTISIN, AlTiN, TiAlN, TiSiN, TiN, DLC,No coating
- Flute: 2F/3F/4F
Features
- Lollipop ball end design with long neck extension clearances design.
- Suitable for front and back chamfer processing.
- And meet the demand of reverse chamfer for drilling at the edge of workpiece in deeper position.
Products Categories
Get A Free Quote
Lollipop Milling Cutter Description
- Place of Origin: Guangdong, China
- Brand Name: INMAN TOOLS
- Model Number: HRC45/55/60/65
- Material: Carbide
- Processing Type: Stainless steel alloy steel.tool steel and other materials.
- Flute: 2F/3F/4F

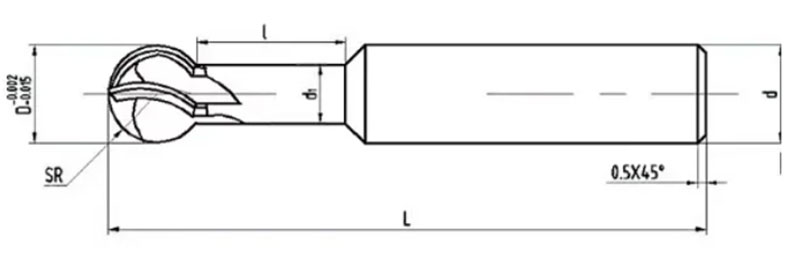

Lollipop Milling Cutter Technical
| Lollipop milling cutter | ||||
| Cat.No | Specifications | |||
| DIA | Lc | Shank | OVL | |
| R1*D4*50L*2F | 2 | 4 | 4 | 50 |
| R1.5*D4*50L*2F | 3 | 6 | 6 | 50 |
| R2.5*D6*50L*2F | 5 | 10 | 6 | 50 |
| R3*D6*50L*2F | 6 | 12 | 6 | 50 |
| R4*D8*60L*2F | 8 | 16 | 8 | 60 |
| R5*D10*60L*2F | 10 | 20 | 10 | 60 |
| R6*D12*60L*2F | 12 | 24 | 12 | 60 |
For more customization details, message supplier
Packaging & Delivery
- One plastic pipe pack one piece,10 pcs per group
- Put goods enclosed with air bubble paper into box
- Other package is accepted according to customer’s requirement
Shipment: UPS/Fedex/DHL/TNT/EMS/ect
