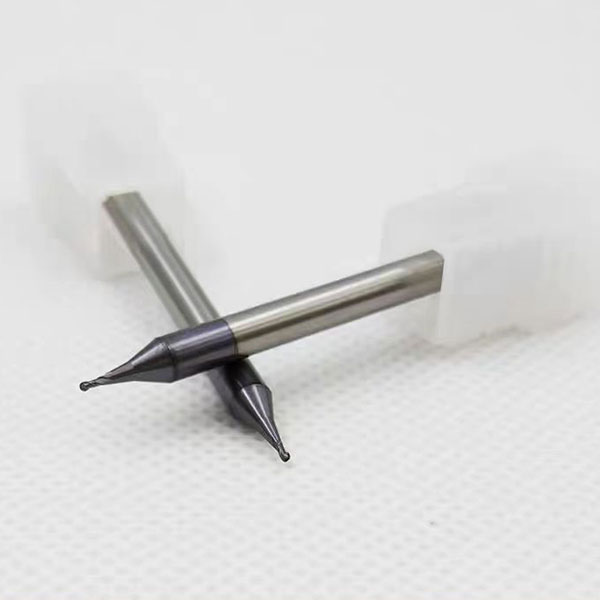

HRC60 Carbide 2 Flute Micro End Mill
- Raw material: Use ZK40SF with 12% Co content and 0.6um grain size, high hardness, good wear resistance.
- Coating: AlTiSiN, with the hardness and thermal stability are up to 4000HV and 1200℃, respectively
- Tolerance of End Mill Diameter: 1 ＜ D≤6 -0.010 ～ -0.030;6 ＜ D≤10 -0.015 ～ -0.040;10 ＜ D≤20 -0.020 ～ -0.050
Products Categories
Get A Free Quote
HRC60 Carbide 2 Flute Micro End Mill Technical
| Micro Ballnose Endmill 2F | |||||
| Cat.No | Blade diameter D | Blade length Lc | Shank diameter d | Total length L | Flutes |
| R0.1*0.4*4*50*2T | 0.2 | 0.4 | 4 | 50 | 2 |
| R0.1.5*0.6*4*50*2T | 0.3 | 0.6 | 4 | 50 | 2 |
| R0.2*0.8*4*50*2T | 0.4 | 0.8 | 4 | 50 | 2 |
| R0.25*1*4*50*2T | 0.5 | 1 | 4 | 50 | 2 |
| R0.3*1.2*4*50*2T | 0.6 | 1.2 | 4 | 50 | 2 |
| R0.35*1.4*4*50*2T | 0.7 | 1.4 | 4 | 50 | 2 |
| R0.4*1.6*4*50*2T | 0.8 | 1.6 | 4 | 50 | 2 |
| R0.45*1.8*4*50*2T | 0.9 | 1.8 | 4 | 50 | 2 |
Suitable for Carbon Steel, Alloy Steel, Cast Iron, Hardened Steel
Packaging & Delivery
- One plastic pipe pack one piece,10 pcs per group
- Put goods enclosed with air bubble paper into box
- Other package is accepted according to customer’s requirement
Shipment: UPS/Fedex/DHL/TNT/EMS/ect
