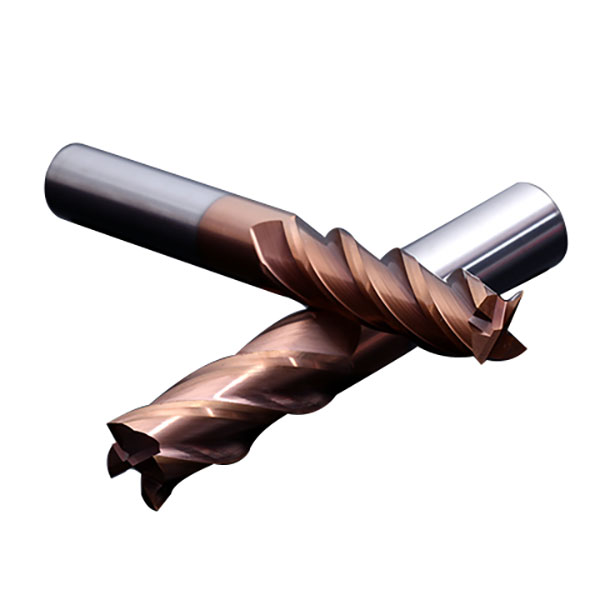

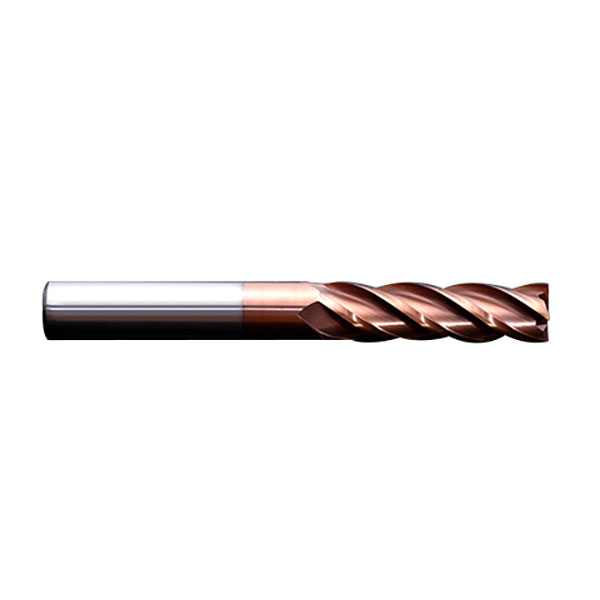

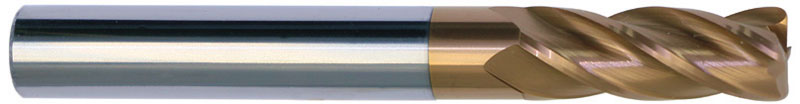

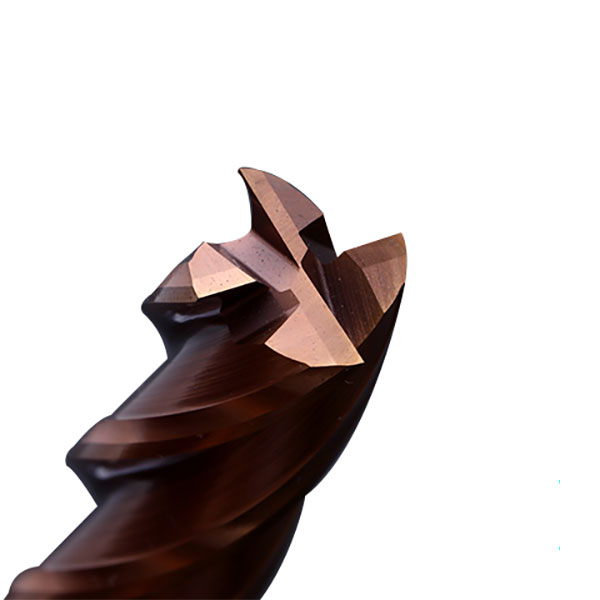

HRC55 Square End Mills 4 Flute
- Raw material: Zigong ZK30UF, high hardness, good wear resistance.
- Coating: TiSiN，containing silica, very high surface hardness and high thermal resistance.
- Tolerance of End Mill Diameter: 1 ＜ D≤6 -0.010 ～ -0.030;6 ＜ D≤10 -0.015 ～ -0.040;10 ＜ D≤20 -0.020 ～ -0.050
Features
- 4 flutes, high rigidity, widely used in shallow slot, profile milling, and finish machining.
- 2 helix angle is 35deg, high adaptability to material and hardness of work pieces, widely used to mold and product processing and cost efficient.
Products Categories
Get A Free Quote
HRC55 Square End Mills 4 Flute Description
- Place of Origin: Guangdong, China
- Brand Name: INMAN TOOLS
- Model Number: HRC45/55/65
- Material: Carbide
- Stock: Rich
- Processing Type: Metal Cutting Tools
HRC55 Square End Mills 4 Flute Technical
| Cutting speed | Vc=130(120-180)m/min |
| Depth of cut | Ap=1/3D(1/8-1/2D) |
| Cutting width | Ae=1/2D(1/4-1D) |
| Single-edge feed | Fz=0.15mm(0.02-0.2) |
| Square End mill | ||||||

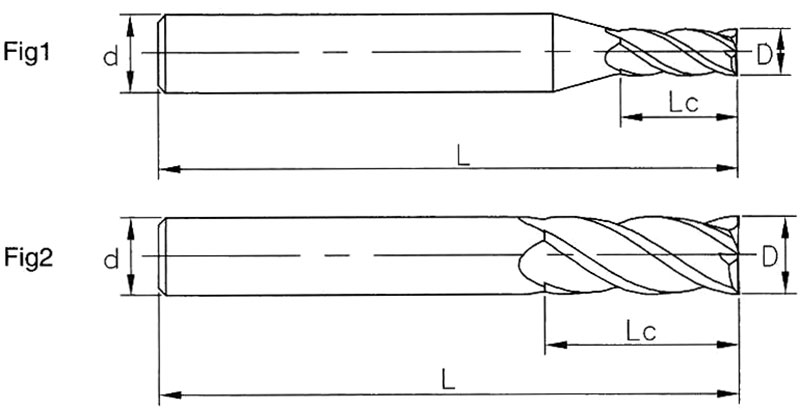

| Cat.No | DIA | Blade length Lc | Shank | OVL | Flutes | Figure No. |
| 3*8*3*50 | 3 | 8 | 3 | 50 | 4 | 2 |
| 3*12*3*75 | 3 | 12 | 3 | 75 | 4 | 2 |
| 3*15*3*100 | 3 | 15 | 3 | 100 | 4 | 2 |
| 1*3*4*50 | 1 | 3 | 4 | 50 | 4 | 1 |
| 1.5*4*4*50 | 1.5 | 4 | 4 | 50 | 4 | 1 |
| 2*5*4*50 | 2 | 5 | 4 | 50 | 4 | 1 |
| 2.5*7*4*50 | 2.5 | 7 | 4 | 50 | 4 | 1 |
| 3*8*4*50 | 3 | 8 | 4 | 50 | 4 | 1 |
| 3.5*10*4*50 | 3.5 | 10 | 4 | 50 | 4 | 1 |
| 4*10*4*50 | 4 | 10 | 4 | 50 | 4 | 2 |
| 4*16*4*75 | 4 | 16 | 4 | 75 | 4 | 2 |
| 4*20*4*100 | 4 | 20 | 4 | 100 | 4 | 2 |
| 5*13*5*50 | 5 | 13 | 5 | 50 | 4 | 2 |
| 5*20*5*75 | 5 | 20 | 5 | 75 | 4 | 2 |
| 5*25*5*100 | 5 | 25 | 5 | 100 | 4 | 2 |
| 2.5*7*6*50 | 2.5 | 7 | 6 | 50 | 4 | 1 |
| 3*8*6*50 | 3 | 8 | 6 | 50 | 4 | 1 |
| 3.5*10*6*50 | 3.5 | 10 | 6 | 50 | 4 | 1 |
| 4*10*6*50 | 4 | 10 | 6 | 50 | 4 | 1 |
| 4.5*12*6*50 | 4.5 | 12 | 6 | 50 | 4 | 1 |
| 5*13*6*50 | 5 | 13 | 6 | 50 | 4 | 1 |
| 6*15*6*50 | 6 | 15 | 6 | 50 | 4 | 2 |
| 6*25*6*75 | 6 | 25 | 6 | 75 | 4 | 2 |
| 6*30*6*100 | 6 | 30 | 6 | 100 | 4 | 2 |
| 6*40*6*150 | 6 | 40 | 6 | 150 | 4 | 2 |
| 7*18*8*60 | 7 | 18 | 8 | 60 | 4 | 1 |
| 8*20*8*60 | 8 | 20 | 8 | 60 | 4 | 2 |
| 8*28*8*75 | 8 | 28 | 8 | 75 | 4 | 2 |
| 8*35*8*100 | 8 | 35 | 8 | 100 | 4 | 2 |
| 8*50*8*150 | 8 | 50 | 8 | 150 | 4 | 2 |
| 9*23*10*75 | 9 | 23 | 10 | 75 | 4 | 1 |
| 10*25*10*75 | 10 | 25 | 10 | 75 | 4 | 2 |
| 10*40*10*100 | 10 | 40 | 10 | 100 | 4 | 2 |
| 10*50*10*150 | 10 | 50 | 10 | 150 | 4 | 2 |
| 11*28*12*75 | 11 | 28 | 12 | 75 | 4 | 1 |
| 12*30*12*75 | 12 | 30 | 12 | 75 | 4 | 2 |
| 12*45*12*100 | 12 | 45 | 12 | 100 | 4 | 2 |
| 12*60*12*150 | 12 | 60 | 12 | 150 | 4 | 2 |
| 14*35*14*80 | 14 | 35 | 14 | 80 | 4 | 2 |
| 14*45*14*100 | 14 | 45 | 14 | 100 | 4 | 2 |
| 14*60*14*150 | 14 | 60 | 14 | 150 | 4 | 2 |
| 16*45*16*100 | 16 | 45 | 16 | 100 | 4 | 2 |
| 16*60*16*150 | 16 | 60 | 16 | 150 | 4 | 2 |
| 18*45*18*100 | 18 | 45 | 18 | 100 | 4 | 2 |
| 18*70*18*150 | 18 | 70 | 18 | 150 | 4 | 2 |
| 20*45*20*100 | 20 | 45 | 20 | 100 | 4 | 2 |
| 20*70*20*150 | 20 | 70 | 20 | 150 | 4 | 2 |
Please adjust the parameters accroding to the material and hardness of work pieces.
Suitable for Carbon Steel, Alloy Steel, Cast Iron, Hardened Steel.
Packaging & Delivery
- One plastic pipe pack one piece,10 pcs per group
- Put goods enclosed with air bubble paper into box
- Other package is accepted according to customer’s requirement
Shipment: UPS/Fedex/DHL/TNT/EMS/ect
