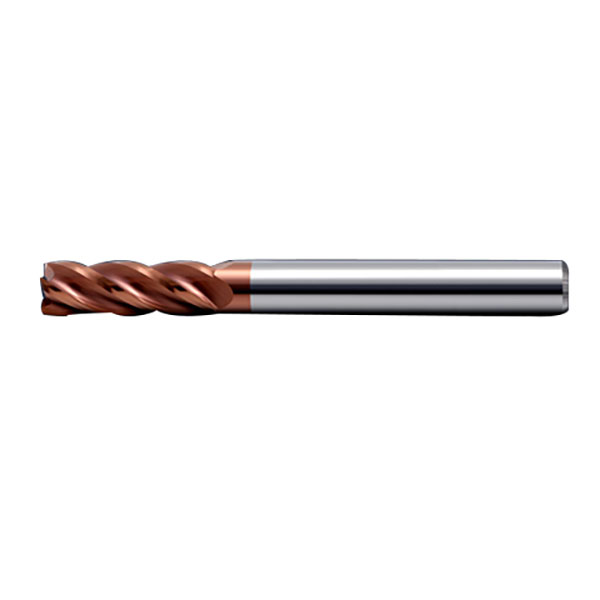

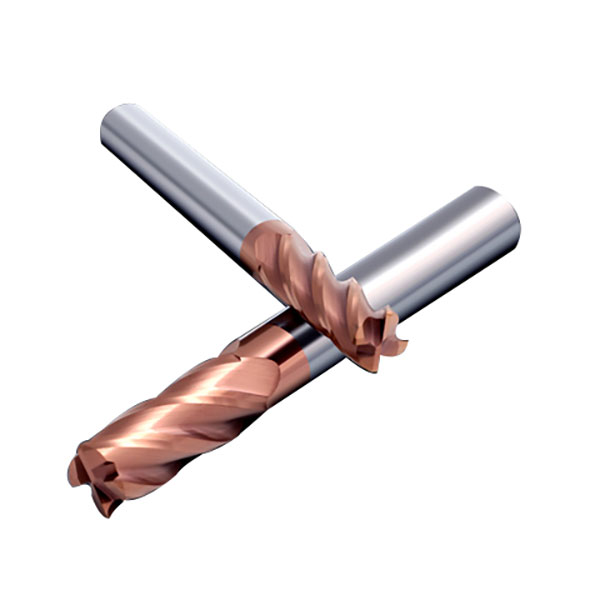

HRC55 Corner Radius End Mills 4 Flute

  • Raw material: Zigong ZK30UF, high hardness, good wear resistance.
  • Coating: TiSiN, containing silica, very high surface hardness and high thermal resistance.
  • Tolerance of End Mill Diameter: 1 < D≤6 -0.010 ~ -0.030;6 < D≤10 -0.015 ~ -0.040;10 < D≤20 -0.020 ~ -0.050

Features

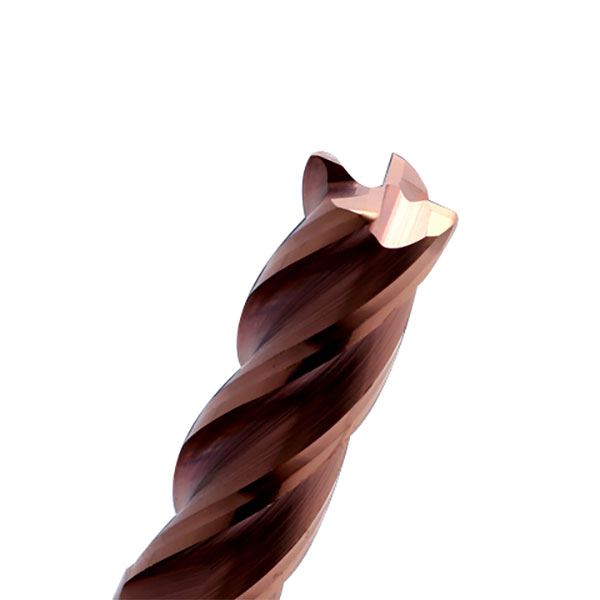

  • Cutting Edge Design: Corner radius, uneasy to cracking, widely used in high speed cutting
  • 2, helix angle is 35 deg, high adaptability to material and hardness of work pieces, widely used to mold and product processing and cost efficient.
Products Categories
Get A Free Quote
Contact Form Demo (#3)

HRC55 Corner Radius End Mills 4 Flute Description

  • Place of Origin: Guangdong, China
  • Brand Name: INMAN TOOLS
  • Model Number: HRC45/55/65
  • Material: Carbide
  • Stock: Rich
  • Processing Type: Metal Cutting Tools

carbide-endmills

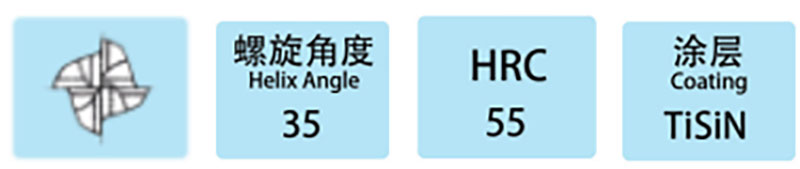

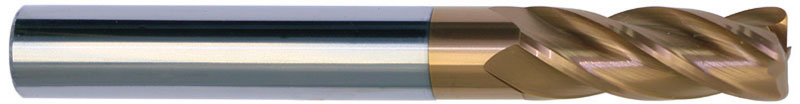

HRC55-Corner-Radius-End-Mills-4-Flute2 HRC55-Corner-Radius-End-Mills-4-Flute1

HRC55 Corner Radius End Mills 4 Flute

Cutting speed Vc=130(120-180)m/min
Depth of cut Ap=1/3D(1/8-1/2D)
Cutting width Ae=1/2D(1/4-1D)
Single-edge feed Fz=0.15mm(0.02-0.2)
4 Flutes Corner Radius End Mill( for steel)
SpecificationOrder NO. Blade diameterD R angle Shank diameterd Blade lengthL1 Number of TeethF full lengthL
3R0.5*3D*50L-4T 3 R0.5 3 8 4 50
3R1.0*3D*50L-4T 3 R1 3 8 4 50
3R0.5*4D*50L-4T 3 R0.5 4 8 4 50
3R1.0*4D*50L-4T 3 R1 4 8 4 50
4R0.5*4D*50L-4T 4 R0.5 4 10 4 50
4R1.0*4D*50L-4T 4 R1 4 10 4 50
6R0.5*6D*50L-4T 6 R0.5 6 15 4 50
6R1.0*6D*50L-4T 6 R1 6 15 4 50
8R0.5*8D*60L-4T 8 R0.5 8 20 4 60
8R1.0*8D*60L-4T 8 R1 8 20 4 60
8R2.0*8D*60L-4T 8 R2 8 20 4 60
10R0.5*10D*75L-4T 10 R0.5 10 25 4 75
10R1.0*10D*75L-4T 10 R1 10 25 4 75
10R2.0*10D*75L-4T 10 R2 10 25 4 75
12R0.5*12D*75L-4T 12 R0.5 12 30 4 75
12R1.0*12D*75L-4T 12 R1 12 30 4 75
4R0.5*4D*75L-4T 4 R0.5 4 16 4 75
4R1.0*4D*75L-4T 4 R1.0 4 16 4 75
6R0.5*6D*75L-4T 6 R0.5 6 25 4 75
6R1.0*6D*75L-4T 6 R1.0 6 25 4 75
8R0.5*8D*75L-4T 8 R0.5 8 28 4 75
8R1.0*8D*75L-4T 8 R1.0 8 28 4 75
4R0.5*4D*100L-4T 4 R0.5 4 20 4 100
4R1.0*4D*100L-4T 4 R1.0 4 20 4 100
6R0.5*6D*100L-4T 6 R0.5 6 30 4 100
6R1.0*6D*100L-4T 6 R1.0 6 30 4 100
8R0.5*8D*100L-4T 8 R0.5 8 35 4 100
8R1.0*8D*100L-4T 8 R1.0 8 35 4 100
10R0.5*10D*100L-4T 10 R0.5 10 40 4 100
10R1.0*10D*100L-4T 10 R1.0 10 40 4 100
12R0.5*12D*100L-4T 12 R0.5 12 45 4 100
12R1.0*12D*100L-4T 12 R1.0 12 45 4 100
6R0.5*6D*150L-4T 6 R0.5 6 40 4 150
6R1.0*6D*150L-4T 6 R1.0 6 40 4 150
8R0.5*8D*150L-4T 8 R0.5 8 50 4 150
8R1.0*8D*150L-4T 8 R1.0 8 50 4 150
10R0.5*10D*150L-4T 10 R0.5 10 50 4 150
10R1.0*10D*150L-4T 10 R1.0 10 50 4 150
12R0.5*12D*150L-4T 12 R0.5 12 60 4 150
12R1.0*12D*150L-4T 12 R1.0 12 60 4 150

Please adjust the parameters accroding to the material and hardness of work pieces.

Suitable for Carbon Steel, Alloy Steel, Cast Iron, Hardened Steel

Packaging & Delivery

  • One plastic pipe pack one piece,10 pcs per group
  • Put goods enclosed with air bubble paper into box
  • Other package is accepted according to customer’s requirement

Shipment: UPS/Fedex/DHL/TNT/EMS/ect
