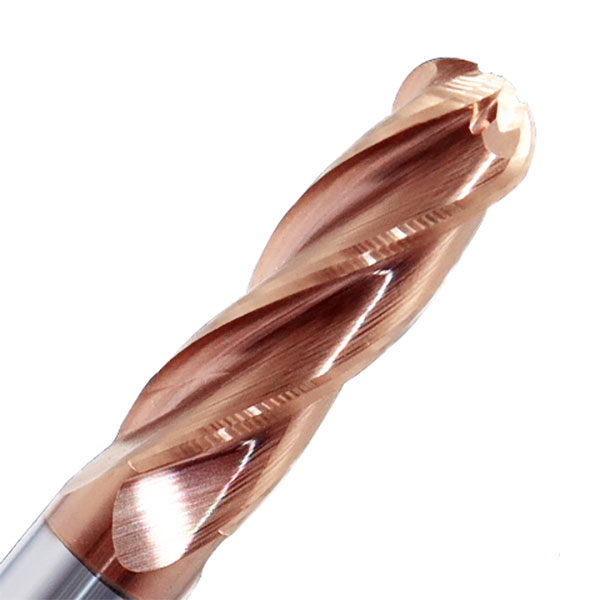

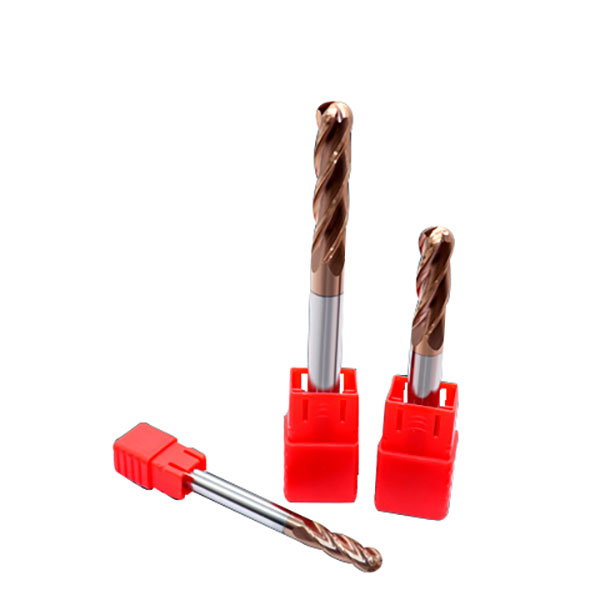

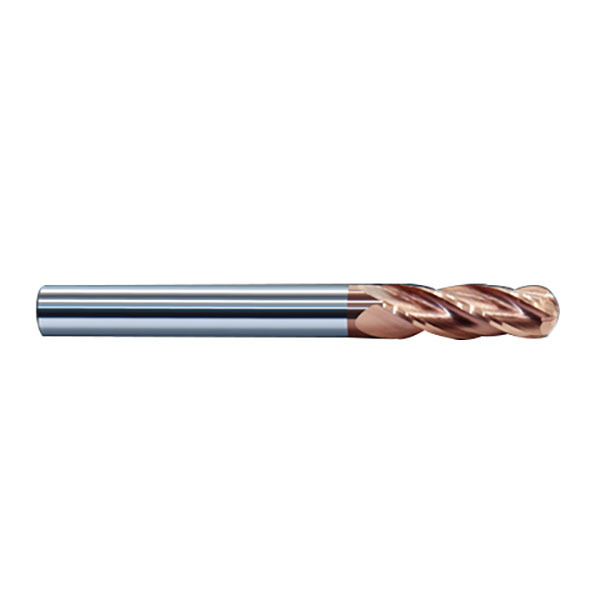

HRC55 Ballnose End Mills 4 Flute
- Raw material: Zigong ZK30UF, high hardness, good wear resistance.
- Coating: TiSiN，containing silica, very high surface hardness and high thermal resistance.
- Tolerance of End Mill Diameter: 1 ＜ D≤6 -0.010 ～ -0.030;6 ＜ D≤10 -0.015 ～ -0.040;10 ＜ D≤20 -0.020 ～ -0.050
Features
- Double-edge design,improves rigidity and surface finish effectively
- Cuttingedge over the center reduces the cutting resistance.
- High capacity of junk slotbenefits chip removal and increases machining efficiency
- 2 flutes design isgood for chip removal, easy for vertical feed processing, widely used in slot and hole processing.
Products Categories
Get A Free Quote
HRC55 Ballnose End Mills 4 Flute Description
- Place of Origin: Guangdong, China
- Brand Name: INMAN TOOLS
- Model Number: HRC45/55/65
- Material: Carbide
- Stock: Rich
- Processing Type: Metal Cutting Tools
HRC45 Ball Nose End Mills 4 Flute Technical
| Ball nose | ||||||
| Cat.No | Specifications | Figure No. | ||||
| DIA | Lc | Shank | OVL | Flutes | ||
| 3*6*3*50-4F | 3 | 6 | 3 | 50 | 4 | 2 |
| 3*6*3*75-4F | 3 | 6 | 3 | 75 | 4 | 2 |
| 3*6*3*100-4F | 3 | 6 | 3 | 100 | 4 | 2 |
| 1*2*4*50-4F | 1 | 2 | 4 | 50 | 4 | 1 |
| 1.5*3*4*50-4F | 1.5 | 3 | 4 | 50 | 4 | 1 |
| 2*4*4*50-4F | 2 | 4 | 4 | 50 | 4 | 1 |
| 2.5*5*4*50-4F | 2.5 | 5 | 4 | 50 | 4 | 1 |
| 3*6*4*50-4F | 3 | 6 | 4 | 50 | 4 | 1 |
| 3.5*7*4*50-4F | 3.5 | 7 | 4 | 50 | 4 | 1 |
| 4*8*4*50-4F | 4 | 8 | 4 | 50 | 4 | 2 |
| 4*8*4*75-4F | 4 | 8 | 4 | 75 | 4 | 2 |
| 4*8*4*100-4F | 4 | 8 | 4 | 100 | 4 | 2 |
| 5*10*5*50-4F | 5 | 10 | 5 | 50 | 4 | 2 |
| 5*10*5*75-4F | 5 | 10 | 5 | 75 | 4 | 2 |
| 5*10*5*100-4F | 5 | 10 | 5 | 100 | 4 | 2 |
| 2.5*5*6*50-4F | 2.5 | 5 | 6 | 50 | 4 | 1 |
| 3*6*6*50-4F | 3 | 6 | 6 | 50 | 4 | 1 |
| 3.5*7*6*50-4F | 3.5 | 7 | 6 | 50 | 4 | 1 |
| 4*8*6*50-4F | 4 | 8 | 6 | 50 | 4 | 1 |
| 4.5*9*6*50-4F | 4.5 | 9 | 6 | 50 | 4 | 1 |
| 5*10*6*50-4F | 5 | 10 | 6 | 50 | 4 | 1 |
| 6*12*6*50-4F | 6 | 12 | 6 | 50 | 4 | 2 |
| 6*12*6*75-4F | 6 | 12 | 6 | 75 | 4 | 2 |
| 6*12*6*100-4F | 6 | 12 | 6 | 100 | 4 | 2 |
| 6*12*6*150-4F | 6 | 12 | 6 | 150 | 4 | 2 |
| 7*14*8*60-4F | 7 | 14 | 8 | 60 | 4 | 1 |
| 8*16*8*60-4F | 8 | 16 | 8 | 60 | 4 | 2 |
| 8*16*8*75-4F | 8 | 16 | 8 | 75 | 4 | 2 |
| 8*16*8*100-4F | 8 | 16 | 8 | 100 | 4 | 2 |
| 8*16*8*150-4F | 8 | 16 | 8 | 150 | 4 | 2 |
| 9*18*10*75-4F | 9 | 18 | 10 | 75 | 4 | 1 |
| 10*20*10*75-4F | 10 | 20 | 10 | 75 | 4 | 2 |
| 10*20*10*100-4F | 10 | 20 | 10 | 100 | 4 | 2 |
| 10*20*10*150-4F | 10 | 20 | 10 | 150 | 4 | 2 |
| 11*22*12*75-4F | 11 | 22 | 12 | 75 | 4 | 1 |
| 12*24*12*75-4F | 12 | 24 | 12 | 75 | 4 | 2 |
| 12*24*12*100-4F | 12 | 24 | 12 | 100 | 4 | 2 |
| 12*24*12*150-4F | 12 | 24 | 12 | 150 | 4 | 2 |
| 14*28*14*80-4F | 14 | 28 | 14 | 80 | 4 | 2 |
| 14*28*14*100-4F | 14 | 28 | 14 | 100 | 4 | 2 |
| 14*28*14*150-4F | 14 | 28 | 14 | 150 | 4 | 2 |
| 16*32*16*100-4F | 16 | 32 | 16 | 100 | 4 | 2 |
| 16*32*16*150-4F | 16 | 32 | 16 | 150 | 4 | 2 |
| 18*36*18*100-4F | 18 | 36 | 18 | 100 | 4 | 2 |
| 18*36*18*150-4F | 18 | 36 | 18 | 150 | 4 | 2 |
| 20*40*20*100-4F | 20 | 40 | 20 | 100 | 4 | 2 |
| 20*40*20*150-4F | 20 | 40 | 20 | 150 | 4 | 2 |
Suitable for Carbon Steel, Alloy Steel, Cast Iron, Hardened Steel
Packaging & Delivery
- One plastic pipe pack one piece,10 pcs per group
- Put goods enclosed with air bubble paper into box
- Other package is accepted according to customer’s requirement
Shipment: UPS/Fedex/DHL/TNT/EMS/ect
