HRC45 Square End Mills 4 Flute
4flutes, high rigidity, widely used in shallow slot, profile milling, and finish machining.
Helix angle is 35deg,high adaptability to material and hardness of workpieces,widely used to mold and product processing and cost efficient.
- Raw material: Zigong YG10X, high hardness, good wear resistance and corrosion resistance.
- Coating: ALTIN, high aluminum content provides excellent hot hardness and oxi-dation resistance.
- Tolerance of End Mill Diameter: 1 ＜ D≤6 -0.010 ～ -0.030;6 ＜ D≤10 -0.015 ～ -0.040;10 ＜ D≤20 -0.020 ～ -0.050
Products Categories
Get A Free Quote
HRC45 Square End Mills 4 Flute Description
- Place of Origin: Guangdong, China
- Brand Name: INMAN TOOLS
- Model Number: HRC45/55/65
- Material: Carbide
- Stock: Rich
- Processing Type: Metal Cutting Tools

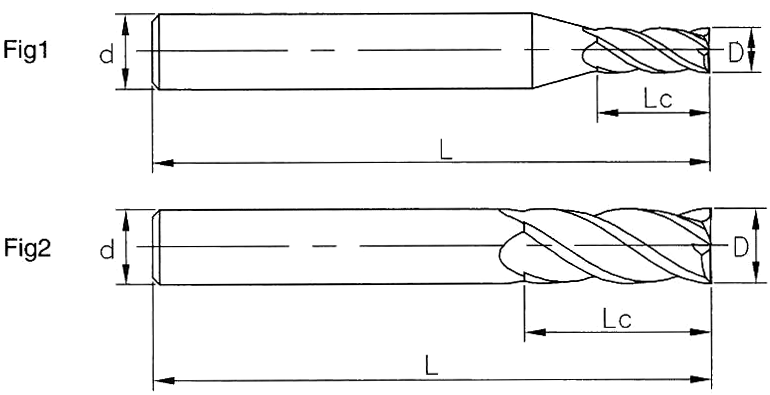

Square End Mill
| Cat.No | DIA | Lc | Shank | OVL | Flutes | Figure No. |
| 3*8*3*50 | 3 | 8 | 3 | 50 | 4 | 2 |
| 3*12*3*75 | 3 | 12 | 3 | 75 | 4 | 2 |
| 3*15*3*100 | 3 | 15 | 3 | 100 | 4 | 2 |
| 1*3*4*50 | 1 | 3 | 4 | 50 | 4 | 1 |
| 1.5*4*4*50 | 1.5 | 4 | 4 | 50 | 4 | 1 |
| 2*5*4*50 | 2 | 5 | 4 | 50 | 4 | 1 |
| 2.5*7*4*50 | 2.5 | 7 | 4 | 50 | 4 | 1 |
| 3*8*4*50 | 3 | 8 | 4 | 50 | 4 | 1 |
| 3.5*10*4*50 | 3.5 | 10 | 4 | 50 | 4 | 1 |
| 4*10*4*50 | 4 | 10 | 4 | 50 | 4 | 2 |
| 4*16*4*75 | 4 | 16 | 4 | 75 | 4 | 2 |
| 4*20*4*100 | 4 | 20 | 4 | 100 | 4 | 2 |
| 5*13*5*50 | 5 | 13 | 5 | 50 | 4 | 2 |
| 5*20*5*75 | 5 | 20 | 5 | 75 | 4 | 2 |
| 5*25*5*100 | 5 | 25 | 5 | 100 | 4 | 2 |
| 2.5*7*6*50 | 2.5 | 7 | 6 | 50 | 4 | 1 |
| 3*8*6*50 | 3 | 8 | 6 | 50 | 4 | 1 |
| 3.5*10*6*50 | 3.5 | 10 | 6 | 50 | 4 | 1 |
| 4*10*6*50 | 4 | 10 | 6 | 50 | 4 | 1 |
| 4.5*12*6*50 | 4.5 | 12 | 6 | 50 | 4 | 1 |
| 5*13*6*50 | 5 | 13 | 6 | 50 | 4 | 1 |
| 6*15*6*50 | 6 | 15 | 6 | 50 | 4 | 2 |
| 6*25*6*75 | 6 | 25 | 6 | 75 | 4 | 2 |
| 6*30*6*100 | 6 | 30 | 6 | 100 | 4 | 2 |
| 6*40*6*150 | 6 | 40 | 6 | 150 | 4 | 2 |
| 7*18*8*60 | 7 | 18 | 8 | 60 | 4 | 1 |
| 8*20*8*60 | 8 | 20 | 8 | 60 | 4 | 2 |
| 8*28*8*75 | 8 | 28 | 8 | 75 | 4 | 2 |
| 8*35*8*100 | 8 | 35 | 8 | 100 | 4 | 2 |
| 8*50*8*150 | 8 | 50 | 8 | 150 | 4 | 2 |
| 9*23*10*75 | 9 | 23 | 10 | 75 | 4 | 1 |
| 10*25*10*75 | 10 | 25 | 10 | 75 | 4 | 2 |
| 10*40*10*100 | 10 | 40 | 10 | 100 | 4 | 2 |
| 10*50*10*150 | 10 | 50 | 10 | 150 | 4 | 2 |
| 11*28*12*75 | 11 | 28 | 12 | 75 | 4 | 1 |
| 12*30*12*75 | 12 | 30 | 12 | 75 | 4 | 2 |
| 12*45*12*100 | 12 | 45 | 12 | 100 | 4 | 2 |
| 12*60*12*150 | 12 | 60 | 12 | 150 | 4 | 2 |
| 14*35*14*80 | 14 | 35 | 14 | 80 | 4 | 2 |
| 14*45*14*100 | 14 | 45 | 14 | 100 | 4 | 2 |
| 14*60*14*150 | 14 | 60 | 14 | 150 | 4 | 2 |
| 16*45*16*100 | 16 | 45 | 16 | 100 | 4 | 2 |
| 16*60*16*150 | 16 | 60 | 16 | 150 | 4 | 2 |
| 18*45*18*100 | 18 | 45 | 18 | 100 | 4 | 2 |
| 18*70*18*150 | 18 | 70 | 18 | 150 | 4 | 2 |
| 20*45*20*100 | 20 | 45 | 20 | 100 | 4 | 2 |
| 20*70*20*150 | 20 | 70 | 20 | 150 | 4 | 2 |
Packaging & Delivery
- One plastic pipe pack one piece,10 pcs per group
- Put goods enclosed with air bubble paper into box
- Other package is accepted according to customer’s requirement
Shipment: UPS/Fedex/DHL/TNT/EMS/ect
