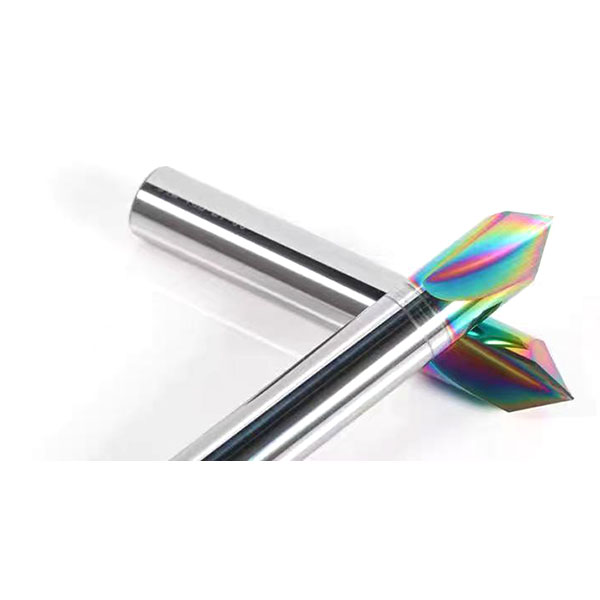

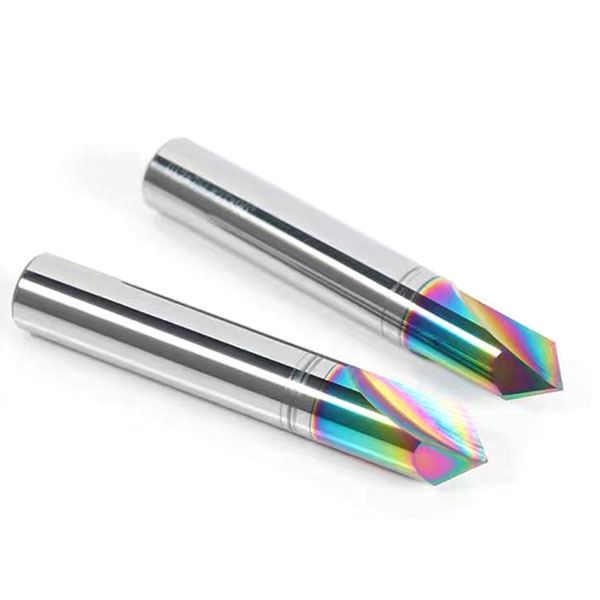

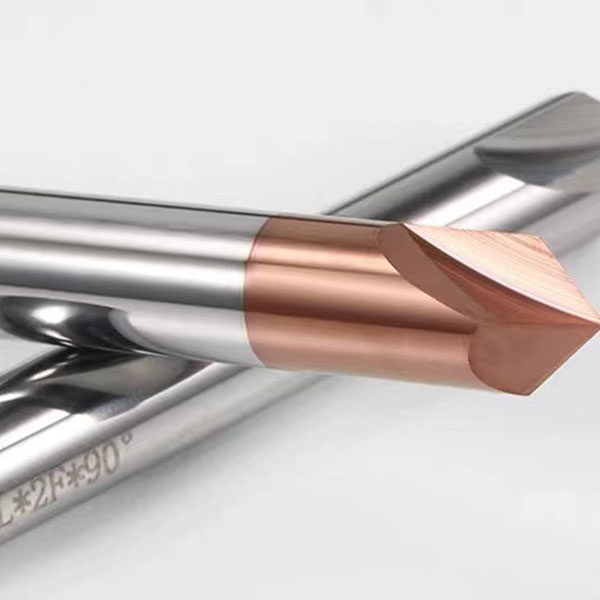

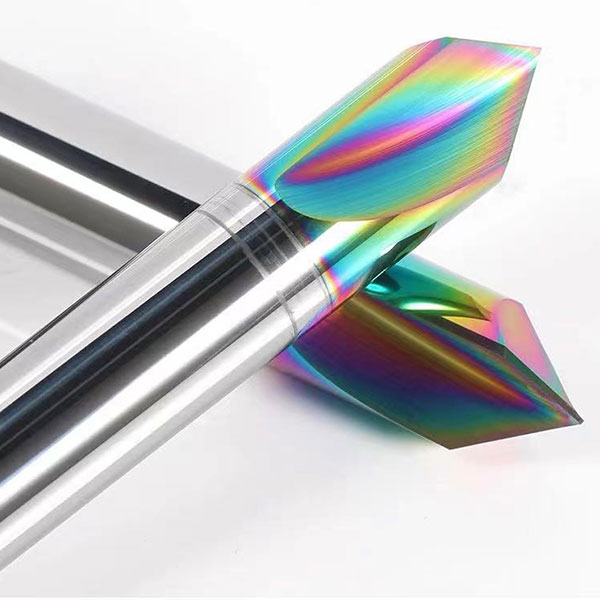

Chamfer Endmill 3 Flutes
- HRC55
- Coating: DLC; TISIN
Features
- The wide chip flute design is more conducive to the discharge of waste chips, prevents the tool from sticking, and greatly improves production efficiency.
- The blade is hard and sharp, wear-resistant, and has a long service life.
Products Categories
Get A Free Quote
Chamfer Endmill 3 Flutes Description
- Place of Origin: Guangdong, China
- Brand Name: INMAN TOOLS
- Model Number: HRC55
- Material: Carbide
- Stock: Rich
- Processing Type: Metal Cutting Tools

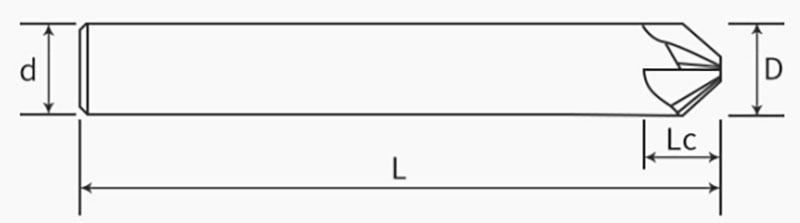

Chamfer Endmill 3 Flutes Technical
| Chamfer Endmill-3F | ||||||
| Cat.No | Specifications | Flutes | Figure No. | |||
| DIA | Blade length Lc | Shank | OVL | |||
| D1*60°*4D*50L-3F | 1 | 4 | 50 | 60 | 3 | 1 |
| D2*60°*4D*50L-3F | 2 | 4 | 50 | 60 | 3 | 1 |
| D3*60°*4D*50L-3F | 3 | 4 | 50 | 60 | 3 | 1 |
| D4*60°*4D*50L-3F | 4 | 4 | 50 | 90 | 3 | 1 |
| D5*60°*5D*50L-3F | 5 | 5 | 50 | 60 | 3 | 1 |
| D6*60°*6D*50L-3F | 6 | 6 | 50 | 60 | 3 | 1 |
| D8*60°*8D*60L-3F | 8 | 8 | 60 | 60 | 3 | 1 |
| D10*60°*10D*60L-3F | 10 | 10 | 60 | 60 | 3 | 1 |
| D12*60°*12D*60L-3F | 12 | 12 | 60 | 60 | 3 | 1 |
| D1*90°*4D*50L-3F | 1 | 4 | 50 | 90 | 3 | 1 |
| D2*90°*4D*50L-3F | 2 | 4 | 50 | 90 | 3 | 1 |
| D3*90°*4D*50L-3F | 3 | 4 | 50 | 90 | 3 | 1 |
| D4*90°*4D*50L-3F | 4 | 4 | 50 | 90 | 3 | 1 |
| D5*90°*5D*50L-3F | 5 | 5 | 50 | 90 | 3 | 1 |
| D6*90°*6D*50L-3F | 6 | 6 | 50 | 90 | 3 | 1 |
| D8*90°*8D*60L-3T | 8 | 8 | 60 | 90 | 3 | 1 |
| D10*90°*10D*60L-3F | 10 | 10 | 60 | 90 | 3 | 1 |
| D12*90°*12D*60L-3F | 12 | 12 | 60 | 90 | 3 | 1 |
| D1*120°*4D*50L-3F | 1 | 4 | 50 | 120 | 3 | 1 |
| D2*120°*4D*50L-3F | 2 | 4 | 50 | 120 | 3 | 1 |
| D3*120°*4D*50L-3F | 3 | 4 | 50 | 120 | 3 | 1 |
| D4*120°*4D*50L-3F | 4 | 4 | 50 | 120 | 3 | 1 |
| D5*120°*5D*50L-3F | 5 | 5 | 50 | 120 | 3 | 1 |
| D6*120°*6D*50L-3F | 6 | 6 | 50 | 120 | 3 | 1 |
| D8*120°*8D*60L-3F | 8 | 8 | 60 | 120 | 3 | 1 |
| D10*120°*10D*60L-3F | 10 | 10 | 60 | 120 | 3 | 1 |
| D12*120°*12D*60L-3F | 12 | 12 | 60 | 120 | 3 | 1 |
