Carbide Tapered Ball Nose End Mill
- HRC: HRC45, HRC55,HRC60, HRC65
- Coated: ALTISIN, AlTiN, TiAlN, TiSiN, TiN, No coating
Features
- Tungsten steel blade, sharp and durable
- Nano coating, heat and corrosion resistant
- Large chip flute, smooth cutting not easy to stick to the tool
- Chamfered handle design
Products Categories
Get A Free Quote
Carbide Tapered Ball Nose End Mill Description
- Place of Origin: Guangdong, China
- Brand Name: INMAN TOOLS
- Model Number: HRC45/55/60/65
- Material: Alloy Steel , Tungsten Steel
- Processing Type: Copper,stainless steel,alloy steel,plastics,wood,cast iron,etc
- Flute: 2F/4F

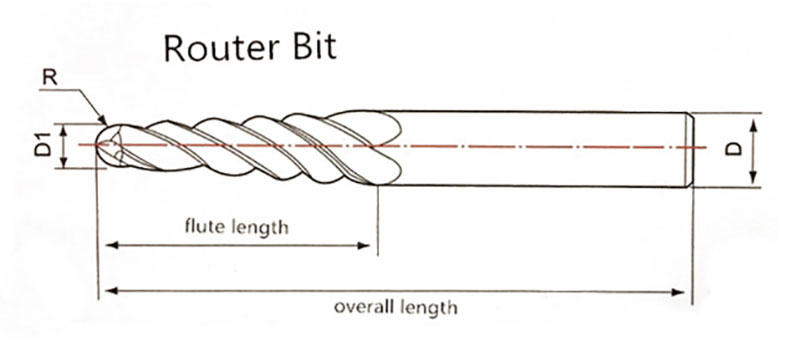

Carbide Tapered Ball Nose End Mill Technical
| Carbide tapered ball nose end mill | |||||
| Cat.No | Specifications | Flutes | |||
| DIA | Blade length Lc | Shank | OVL | ||
| R0.5*25*4D*60L | R0.5 | 25 | 4 | 60 | 2/4 |
| R1.0*25*4D*60L | R1.0 | 25 | 4 | 60 | 2/4 |
| R0.5*35*4D*70L | R0.5 | 35 | 4 | 70 | 2/4 |
| R1.0*35*4D*70L | R1.0 | 35 | 4 | 70 | 2/4 |
| R0.5*25*6D*50L | R0.5 | 25 | 6 | 50 | 2/4 |
| R1.0*25*6D*50L | R1.0 | 25 | 6 | 50 | 2/4 |
| R1.25*25*6D*50L | R1.25 | 25 | 6 | 50 | 2/4 |
| R1.5*25*6D*50L | R1.5 | 25 | 6 | 50 | 2/4 |
| R0.5*30.5*6D*75L | R0.5 | 30.5 | 6 | 75 | 2/4 |
| R1.0*30.5*6D*75L | R1.0 | 30.5 | 6 | 75 | 2/4 |
| R1.25*30.5*6D*75L | R1.25 | 30.5 | 6 | 75 | 2/4 |
| R1.5*30.5*6D*75L | R1.5 | 30.5 | 6 | 75 | 2/4 |
| R0.5*45*6D*75L | R0.5 | 45 | 6 | 75 | 2/4 |
| R1.0*45*6D*75L | R1.0 | 45 | 6 | 75 | 2/4 |
| R1.25*45*6D*75L | R1.25 | 45 | 6 | 75 | 2/4 |
| R1.5*45*6D*75L | R1.5 | 45 | 6 | 75 | 2/4 |
| R0.5*45*8D*100L | R0.5 | 45 | 8 | 100 | 2/4 |
| R1.0*45*8D*100L | R1.0 | 45 | 8 | 100 | 2/4 |
| R1.25*45*8D*100L | R1.25 | 45 | 8 | 100 | 2/4 |
| R1.5*45*8D*100L | R1.5 | 45 | 8 | 100 | 2/4 |
| R0.5*60*8D*120L | R0.5 | 60 | 8 | 120 | 2/4 |
| R1.0*60*8D*120L | R1.0 | 60 | 8 | 120 | 2/4 |
| R1.25*60*8D*120L | R1.25 | 60 | 8 | 120 | 2/4 |
| R1.5*60*8D*120L | R1.5 | 60 | 8 | 120 | 2/4 |
| R0.5*60*10D*120L | R0.5 | 60 | 10 | 120 | 2/4 |
| R1.0*60*10D*120L | R1.0 | 60 | 10 | 120 | 2/4 |
| R1.25*60*10D*120L | R1.25 | 60 | 10 | 120 | 2/4 |
| R1.5*60*10D*120L | R1.5 | 60 | 10 | 120 | 2/4 |
| R0.5*60*12D*120L | R0.5 | 60 | 12 | 120 | 2/4 |
| R1.0*60*12D*120L | R1.0 | 60 | 12 | 120 | 2/4 |
| R1.25*60*12D*120L | R1.25 | 60 | 12 | 120 | 2/4 |
| R1.5*60*12D*120L | R1.5 | 60 | 12 | 120 | 2/4 |
For more customization details, message supplier
Packaging & Delivery
- One plastic pipe pack one piece,10 pcs per group
- Put goods enclosed with air bubble paper into box
- Other package is accepted according to customer’s requirement
Shipment: UPS/Fedex/DHL/TNT/EMS/ect

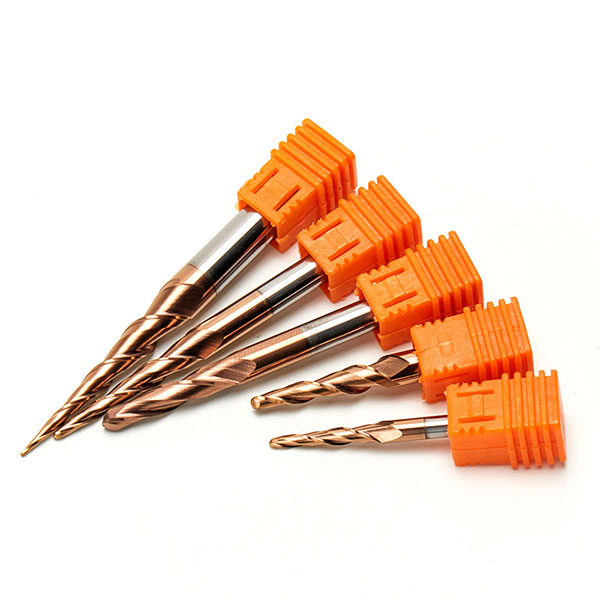

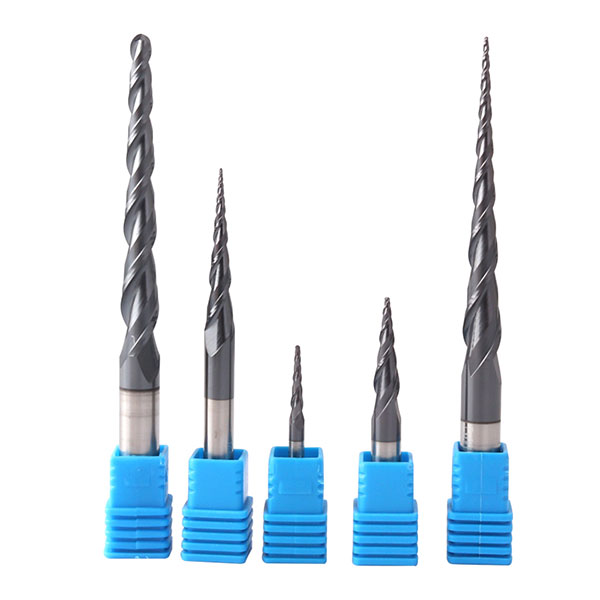

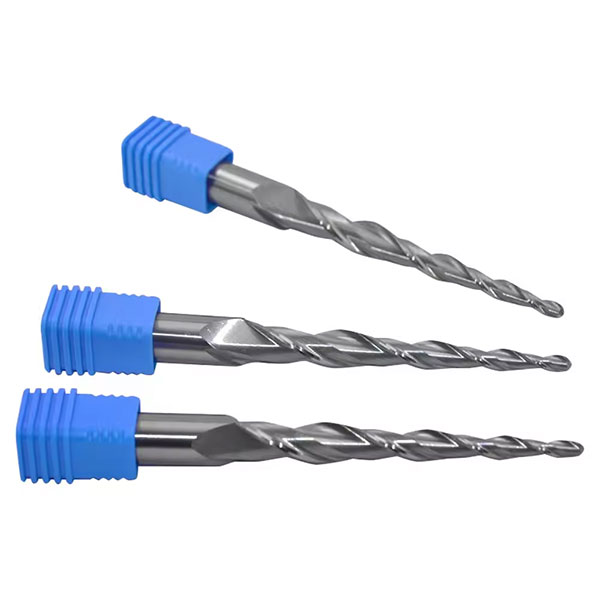

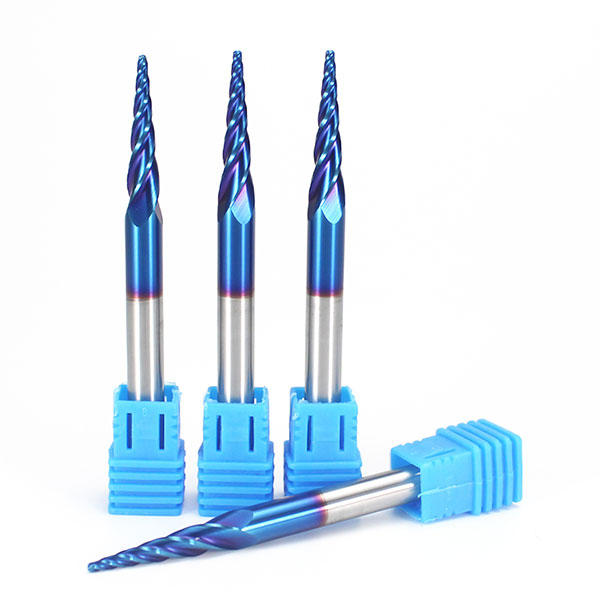

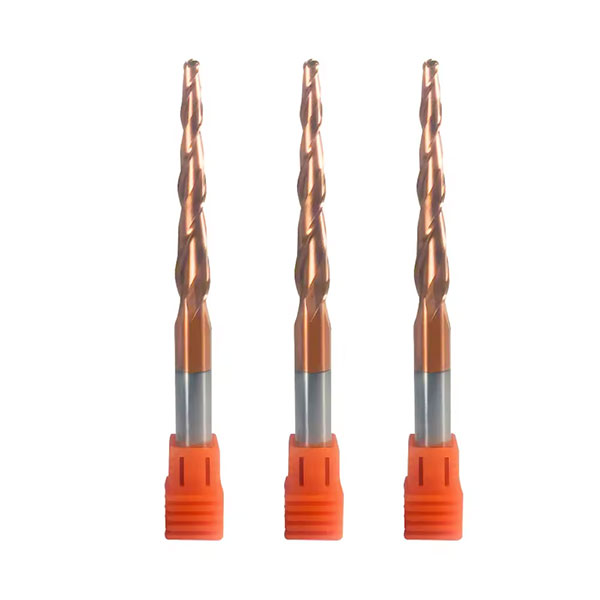

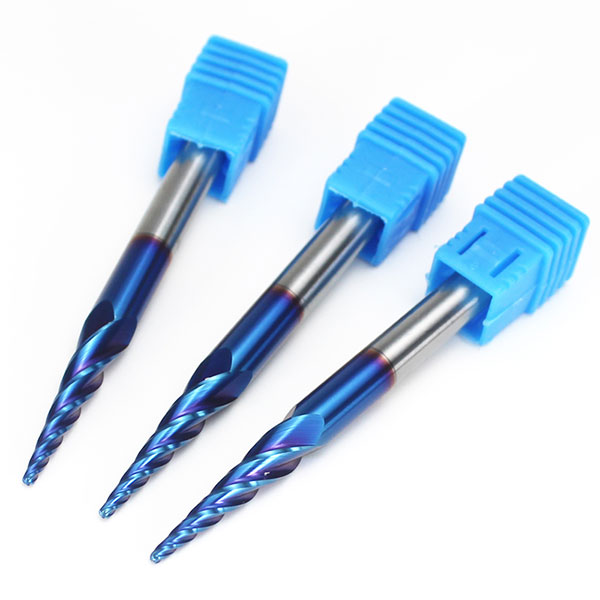

Carbide Tapered Ball Nose End Mill Detail Display
Carbide-Tapered-Ball-Nose-End-Mill-1
Carbide-Tapered-Ball-Nose-End-Mill-12
Carbide-Tapered-Ball-Nose-End-Mill-11
