Carbide Center Drill Bit
- Degree: 60，90，120
- HRC: HRC45, HRC55, HRC60, HRC65
- Coated: ALTISIN, AlTiN, TiAlN, TiSiN, TiN,No coating
Features
- Double head design
Double head design,2 heads can work at the same time,save cost, fast and convenient. - Sharp cutting edge
Sharp cutting edge,good chip removal,make drill bit more durable,extend the tool life. - 3 Large spiral groove design
Reasonable 60/90/120 degree large helical angle design,increase the chip removal, facilitate high speed operation to accelerate the chip removal,no sticking knife
Products Categories
Get A Free Quote
Carbide Center Drill Bit Description
- Place of Origin: Guangdong, China
- Brand Name: INMAN TOOLS
- Model Number: HRC45/55/60/65
- Material: Carbide steel
- Processing Type: Copper, Cast Iron, Carbon steel, Alloy steel, Mould steel

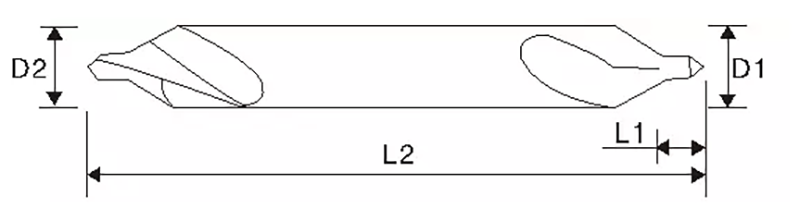

Carbide Center Drill Bit Technical
| Cat.No | DIA | Lc | Shank | OVL | Flutes |
| D0.4*0.8*D4*50L | 0.4 | 0.8 | 4 | 50 | 2 |
| D0.5*1*D4*50L | 0.5 | 1 | 4 | 50 | 2 |
| D0.6*1.2*D4*50L | 0.6 | 1.2 | 4 | 50 | 2 |
| D0.7*1.4*D4*50L | 0.7 | 1.4 | 4 | 50 | 2 |
| D0.8*1.5*D4*50L | 0.8 | 1.5 | 4 | 50 | 2 |
| D0.9*1.5*D4*50L | 0.9 | 1.5 | 4 | 50 | 2 |
| D1.0*1.5*D4*50L | 1.0 | 1.5 | 4 | 50 | 2 |
| D1.1*1.8*D4*50L | 1.1 | 1.8 | 4 | 50 | 2 |
| D1.2*1.8*D4*50L | 1.2 | 1.8 | 4 | 50 | 2 |
| D1.3*1.8*D4*50L | 1.3 | 1.8 | 4 | 50 | 2 |
| D1.4*2*D4*50L | 1.4 | 2 | 4 | 50 | 2 |
| D1.5*2*D4*50L | 1.5 | 2 | 4 | 50 | 2 |
| D1.6*2*D4*50L | 1.6 | 2 | 4 | 50 | 2 |
| D1.7*2.2*D4*50L | 1.7 | 2.2 | 4 | 50 | 2 |
| D1.8*2.2*D4*50L | 1.8 | 2.2 | 4 | 50 | 2 |
| D1.9*2.2*D4*50L | 1.9 | 2.2 | 4 | 50 | 2 |
| D2.0*2.5*D4*50L | 2.0 | 2.5 | 4 | 50 | 2 |
| D2.0*2.5*D6*50L | 2.0 | 2.5 | 6 | 50 | 2 |
| D2.5*3*D6*50L | 2.5 | 3 | 6 | 50 | 2 |
| D3.0*3.5*D6*50L | 3.0 | 3.5 | 6 | 50 | 2 |
| D3.0*3.5*D8*60L | 3.0 | 3.5 | 8 | 60 | 2 |
| D4.0*5*D8*60L | 4.0 | 5 | 8 | 60 | 2 |
| D4.0*5*D10*60L | 4.0 | 5 | 10 | 60 | 2 |
| D5.0*6.5*D10*60L | 5.0 | 6.5 | 10 | 60 | 2 |
| D6.0*7.5*D10*60L | 6.0 | 7.5 | 10 | 60 | 2 |
| D1.0*1.5*D4*100L | 1.0 | 1.5 | 4 | 100 | 2 |
| D1.5*2*D4*100L | 1.5 | 2 | 4 | 100 | 2 |
| D2.0*2.5*D6*100L | 2.0 | 2.5 | 6 | 100 | 2 |
| D3.0*3.5*D6*100L | 3.0 | 3.5 | 6 | 100 | 2 |
| D3.0*3.5*D8*100L | 3.0 | 3.5 | 8 | 100 | 2 |
| D4.0*5*D8*100L | 4.0 | 5 | 8 | 100 | 2 |
| D4.0*5*D10*100L | 4.0 | 5 | 10 | 100 | 2 |
| D5.0*6.5*D10*100L | 5.0 | 5 | 10 | 100 | 2 |
For more customization details, message supplier
Packaging & Delivery
- One plastic pipe pack one piece,10 pcs per group
Put goods enclosed with air bubble paper into box
Other package is accepted according to customer’s requirement
Shipment: UPS/Fedex/DHL/TNT/EMS/ect
